      Bàsiques 3. Sistema dièdric
      2. Dibuix. Materials, eines i sistemes de representació
      Without background sound
      Logo

      Bàsiques 3. Sistema dièdric 1

      0

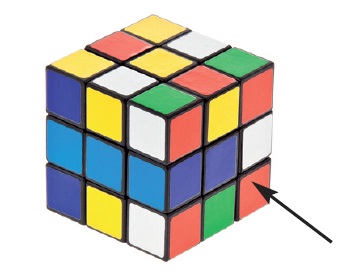

      Indica les tres vistes d'aquest cub de Rubik desordenat respectant els colors de la fotografia. La fletxa indica quina vista escollim com a alçat.



       Lateral dret:

       Lateral esquerra:

       Superior:

        3 attempts
      Done
      Bàsiques 3. Sistema dièdric 2
      Bàsiques 3. Sistema dièdric
      2. Dibuix. Materials, eines i sistemes de representació
      Without background sound
      Logo

      Bàsiques 3. Sistema dièdric 2

      P

      Determina les vistes de les figures següents formades amb cubs. Fixa't que et serà més còmode dibuixar el perfil dret.





      Pots reproduir el vídeo i aturar-lo on et convingui per identificar cada vista.



      a)

      b)

      c)

      d)

        1 attempt
      Done
      Bàsiques 3. Sistema dièdric 1
      Bàsiques 3. Sistema dièdric 3
      Bàsiques 3. Sistema dièdric
      2. Dibuix. Materials, eines i sistemes de representació
      Without background sound
      Logo

      Bàsiques 3. Sistema dièdric 3

      P

      Realitza les vistes ortogonals de la lletra A tot indicant amb línies de punts les arestes que no es veuen, com en l'exemple de la lletra M.



        1 attempt
      Done
      Bàsiques 3. Sistema dièdric 2
      Bàsiques 3. Sistema dièdric 4
      Bàsiques 3. Sistema dièdric
      2. Dibuix. Materials, eines i sistemes de representació
      Without background sound
      Logo

      Bàsiques 3. Sistema dièdric 4

      P

      Reprodueix a la llibreta les vistes d'aquesta peça i numera cada cara en cada un dels plans vertical, horitzontal i de perfil.



        1 attempt
      Done
      Bàsiques 3. Sistema dièdric 3
      Bàsiques 3. Sistema dièdric 5
      Bàsiques 3. Sistema dièdric
      2. Dibuix. Materials, eines i sistemes de representació
      Without background sound
      Logo

      Bàsiques 3. Sistema dièdric 5

      P

      Dibuixa les vistes de les figures següents. La fletxa indica quina vista escollim com a alçat. Pots reproduir el vídeo i aturar-lo on et convingui per identificar cada vista.







      a)

      b)

      c)

      d)

        1 attempt
      Done
      Bàsiques 3. Sistema dièdric 4
      Bàsiques 3. Sistema dièdric 6
      Bàsiques 3. Sistema dièdric
      2. Dibuix. Materials, eines i sistemes de representació
      Without background sound
      Logo

      Bàsiques 3. Sistema dièdric 6

      P

      Realitza el croquis de les vistes ortogonals d'una barra de cola d'enganxar. Cal dibuixar el perfil? Per què?

        1 attempt
      Done
      Bàsiques 3. Sistema dièdric 5
      Bàsiques 3. Sistema dièdric 7
      Bàsiques 3. Sistema dièdric
      2. Dibuix. Materials, eines i sistemes de representació
      Without background sound
      Logo

      Bàsiques 3. Sistema dièdric 7

      0

      Quina és la distribució correcta de l'alçat, la planta i el perfil en un croquis de les vistes?

      • Sempre el principal és l'alçat, a un costat la planta i a sota el perfil.

      • Correct answer
        Wrong answer
      • Sempre la principal és la planta, a un costat l'alçada i a sota el perfil.

      • Correct answer
        Wrong answer
      • Sempre el principal és l'alçat, a un costat el perfil i a sota la planta.

      • Correct answer
        Wrong answer
      • No importa com estiguin distribuides les vistes en un corquis.

      • Correct answer
        Wrong answer

        3 attempts
      Done
      Bàsiques 3. Sistema dièdric 6
      • 1. Bàsiques 3. Sistema dièdric 1
      • 2. Bàsiques 3. Sistema dièdric 2
      • 3. Bàsiques 3. Sistema dièdric 3
      • 4. Bàsiques 3. Sistema dièdric 4
      • 5. Bàsiques 3. Sistema dièdric 5
      • 6. Bàsiques 3. Sistema dièdric 6
      • 7. Bàsiques 3. Sistema dièdric 7
      1. 1
      2. 2
      3. 3
      4. 4
      5. 5
      6. 6
      7. 7
