      Bàsiques 2. L’escala
      3. Dibuix. De l'esbós al plànol
      Without background sound
      Logo

      Bàsiques 2. L'escala 1

      0

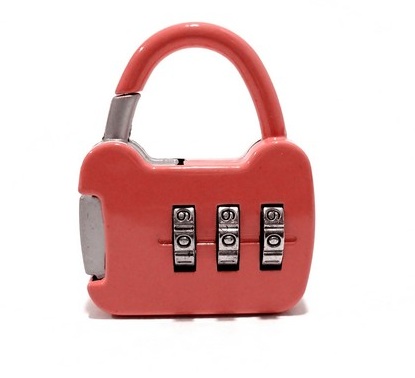

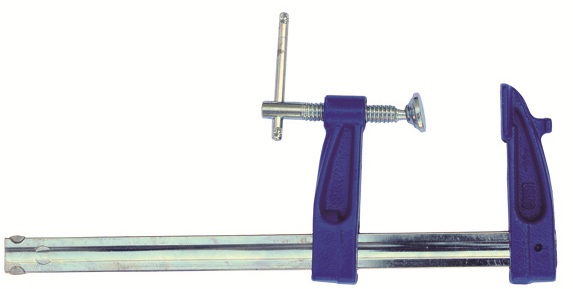

      A continuació tens un seguit de fotografies d'eines i materials que pots trobar en una ferreteria. Algunes estan reproduïdes a una escala d'ampliació, unes altres estan a escala natural i en unes altres la imatge ha estat reduïda. Identifica el tipus d'escala de cada fotografia:







        3 attempts
      Done
      Bàsiques 2. L'escala 2
      Bàsiques 2. L’escala
      3. Dibuix. De l'esbós al plànol
      Without background sound
      Logo

      Bàsiques 2. L'escala 2

      0

      Què indica l'escala gràfica d'aquest mapa? A partir de l'escala gràfica calcula la distància en línia recta entre els punts següents del mapa:





      L'escala gràfica indica la relació entre el dibuix del  i la .



      – Girona i Huelva: km



       – Palma i la Corunya: km



       – Saragossa i Osca:  km



      – Gijón i Porto, passant per Madrid:  km



      – La diferència entre anar de Bilbao a Barcelona directe o passant per Madrid.

      Directe:  km

      Fent escala:  km

        1062.5 500 realitat mapa 1050 831.25 81.25

        3 attempts
      Done
      Bàsiques 2. L'escala 1
      Bàsiques 2. L'escala 3
      Bàsiques 2. L’escala
      3. Dibuix. De l'esbós al plànol
      Without background sound
      Logo

      Bàsiques 2. L'escala 3

      P

      Mesura l'amplada i la llargada del llibre que estiguis llegint i dibuixa'l a escala 1:2 en un full DIN A4 normalitzat i amb caixetí.

        1 attempt
      Done
      Bàsiques 2. L'escala 2
      Bàsiques 2. L'escala 4
      Bàsiques 2. L’escala
      3. Dibuix. De l'esbós al plànol
      Without background sound
      Logo

      Bàsiques 2. L'escala 4

      0

      Quina longitud i quina alçada ha de tenir el dibuix d'una peça rectangular de 2.000 mm i 1.000 mm respectivament a escala 1/50? Dibuixa-ho.



      A escala 1/50, la llargària seria de mm i l'amplària seria de mm.

        40 20

        3 attempts
      Done
      Bàsiques 2. L'escala 3
      Bàsiques 2. L'escala 5
      Bàsiques 2. L’escala
      3. Dibuix. De l'esbós al plànol
      Without background sound
      Logo

      Bàsiques 2. L'escala 5

      0

      Una finestra dibuixada en un plànol a escala 1/100 fa 25 mm d'amplada. Quina amplada real té la finestra?

      • L'amplada de la finestra és de 25.000 mm a la realitat, o el que és el mateix, 25 m.

      • Correct answer
        Wrong answer
      • L'amplada de la finestra és de 250 mm a la realitat, o el que és el mateix, 0,25 m.

      • Correct answer
        Wrong answer
      • L'amplada de la finestra és de 2.500 mm a la realitat, o el que és el mateix, 2,5 m.

      • Correct answer
        Wrong answer
      • L'amplada de la finestra és de 25 mm a la realitat, o el que és el mateix, 0,025 m.

      • Correct answer
        Wrong answer

        3 attempts
      Done
      Bàsiques 2. L'escala 4
      Bàsiques 2. L'escala 6
      Bàsiques 2. L’escala
      3. Dibuix. De l'esbós al plànol
      Without background sound
      Logo

      Bàsiques 2. L'escala 6

      P

      A quina escala hauràs de dibuixar el plànol d'una casa que fa una llargada total de 20 m perquè càpiga en un full DIN A3?

        1 attempt
      Done
      Bàsiques 2. L'escala 5
      Bàsiques 2. L'escala 7
      Bàsiques 2. L’escala
      3. Dibuix. De l'esbós al plànol
      Without background sound
      Logo

      Bàsiques 2. L'escala 7

      0

      Quin plànol faries a escala més gran: el del mecanisme d'un rellotge o el dels punts de connexió de cèl·lules neuronals.

      • El del mecanisme d'un rellotge.

      • Correct answer
        Wrong answer
      • El dels punts de connexió de cèl·lules neuronals.

      • Correct answer
        Wrong answer
      • Els dos necessiten la mateixa ampliació.

      • Correct answer
        Wrong answer
      • No és necessari fer un plànol d'aquests dos elements.

      • Correct answer
        Wrong answer

        3 attempts
      Done
      Bàsiques 2. L'escala 6
      Bàsiques 2. L'escala 8
      Bàsiques 2. L’escala
      3. Dibuix. De l'esbós al plànol
      Without background sound
      Logo

      Bàsiques 2. L'escala 8

      0

      A quina escala veuràs els detalls més grans, a 1:25.000 o a 1:30.000?

      • A l'escala 1:30.000.

      • Correct answer
        Wrong answer
      • A l'escala 1:25.000.

      • Correct answer
        Wrong answer
      • A cap de les dues.

      • Correct answer
        Wrong answer

        3 attempts
      Done
      Bàsiques 2. L'escala 7
      • 1. Bàsiques 2. L'escala 1
      • 2. Bàsiques 2. L'escala 2
      • 3. Bàsiques 2. L'escala 3
      • 4. Bàsiques 2. L'escala 4
      • 5. Bàsiques 2. L'escala 5
      • 6. Bàsiques 2. L'escala 6
      • 7. Bàsiques 2. L'escala 7
      • 8. Bàsiques 2. L'escala 8
